Datasheet:LM46002PWPEVM.pdf
Power Management IC Development Tools Evaluation Module
Introduction:

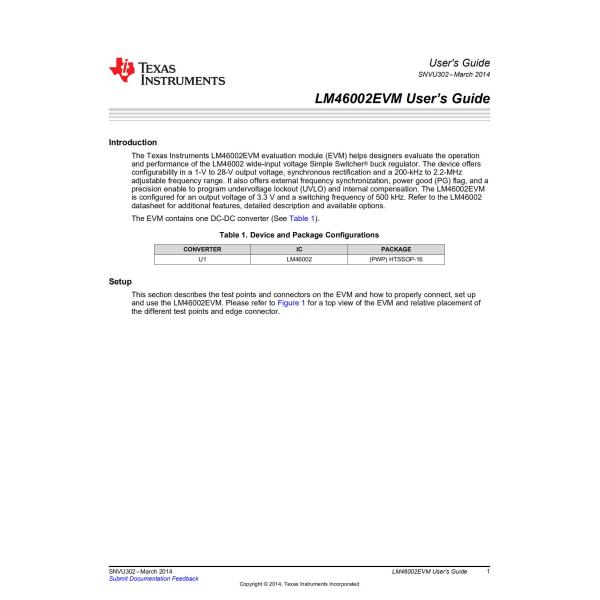

The Texas Instruments LM46002EVM evaluation module (EVM) helps designers evaluate the operation
and performance of the LM46002 wide-input voltage Simple Switcher® buck regulator. The device offers
configurability in a 1-V to 28-V output voltage, synchronous rectification and a 200-kHz to 2.2-MHz
adjustable frequency range. It also offers external frequency synchronization, power good (PG) flag, and a
precision enable to program undervoltage lockout (UVLO) and internal compensation. The LM46002EVM
is configured for an output voltage of 3.3 V and a switching frequency of 500 kHz. Refer to the LM46002
datasheet for additional features, detailed description and available options.
Description:
LM4600xPWPEVM Evaluation Modules
Texas Instruments LM4600xPWPEVM Evaluation Modules (EVMs) are fully assembled and tested circuits
for evaluating the LM4600xPWP devices. The Texas Instruments LM4600xPWP devices are 60V synchronous
Simple Switcher step-down converters. Each of the evaluation modules operates from a 3.5V to 60V input and
provides a 5V output at either 0.5A (LM46000PWEVM), 1A (LM46001PWEVM), or 2A (LM46002PWEVM).
Quick Detail:
| Manufacturer | Texas Instruments |
| Manufacturer Product Number | LM46002PWPEVM |
| Description | EVAL BOARD BUCK REG LM46002 |
| Detailed Description | LM46002 SIMPLE SWITCHER® DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
